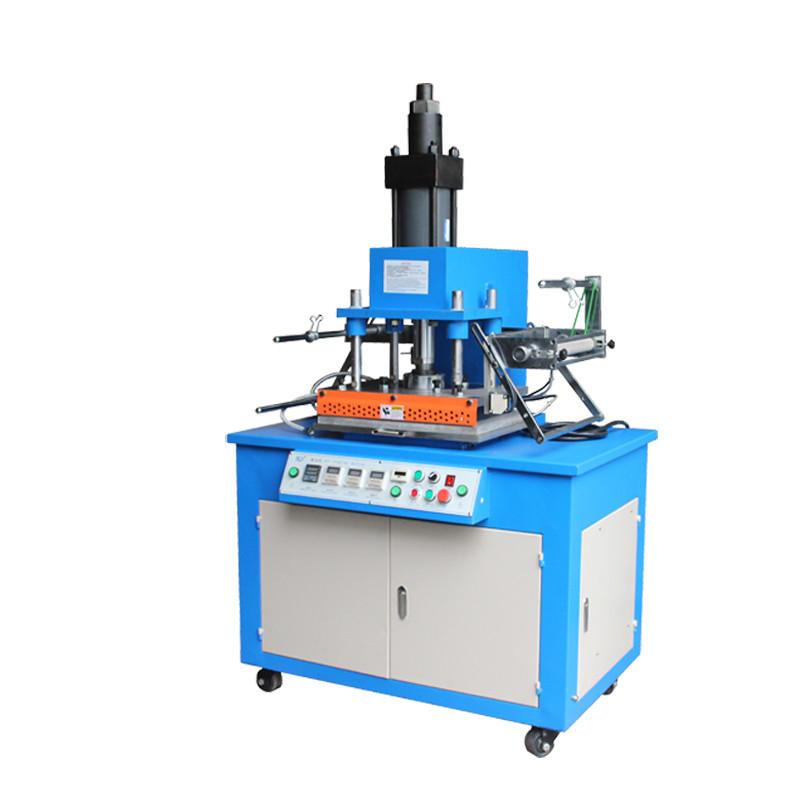

Heavy Duty Hydraulic Leather Hot Foil Stamping Machine
가죽 화면 핫 스탬핑 머신
,수압 가죽 열 필름 스탬핑 기계
Heavy Duty Hydraulic Leather Hot Foil Stamping Machine
Descripe:
This machine the fuselage adopt stainless steel material, equipment parts are premium brands for the domestic and abroad, stable performance, long service life;Adopt novel design idea and advanced manufacturing technology, which makes structure of machine more reasonable and perfect.
Features:
1.High pressure suit for big size hot stamping

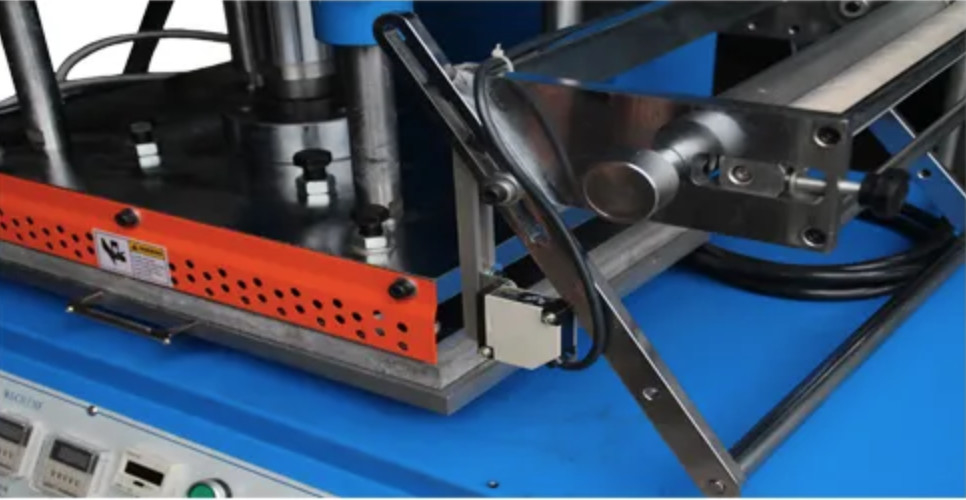

2.Automatic foil feeding
3.Hydraulic

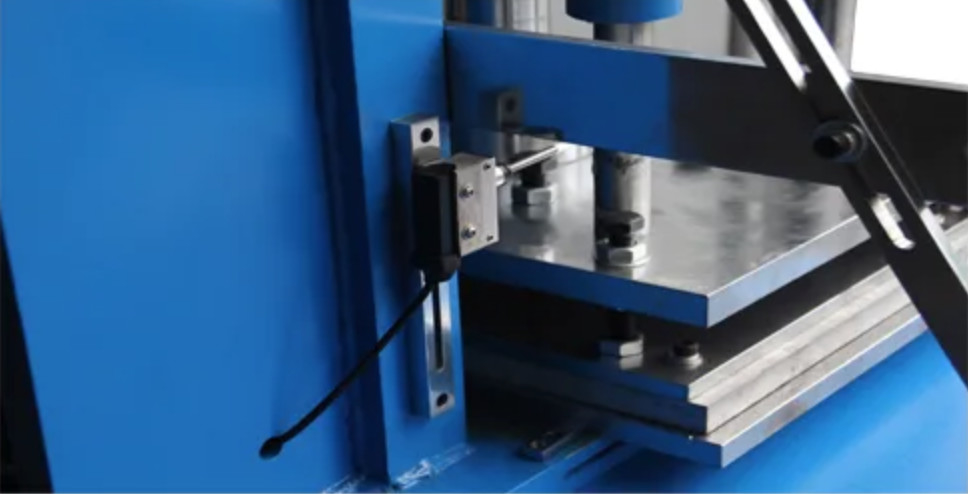

4.Photocell protection
5.embossing and relief effect
Parameters:
|
Model
|
HGP-300
|
HGP-350
|
|
Gilding area
|
300*400mm
|
350*500mm
|
|
Bronzing pressure
|
3.4T
|
15T
|
|
Gilding speed
|
8times/min
|
|
|
weight
|
400KG
|
500KG
|
|
Voltage
|
380v 50-60hz
|
|
|
Machine size
|
870*710*1640mm
|
1020*760*1820mm
|
|
Power
|
2KW
|
2.5kw
|
|
Pressure pressure
|
1-7mpa
|
1-10mpa
|
Company Profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.
